Flow Master Metering System

#5 FM Flow Master

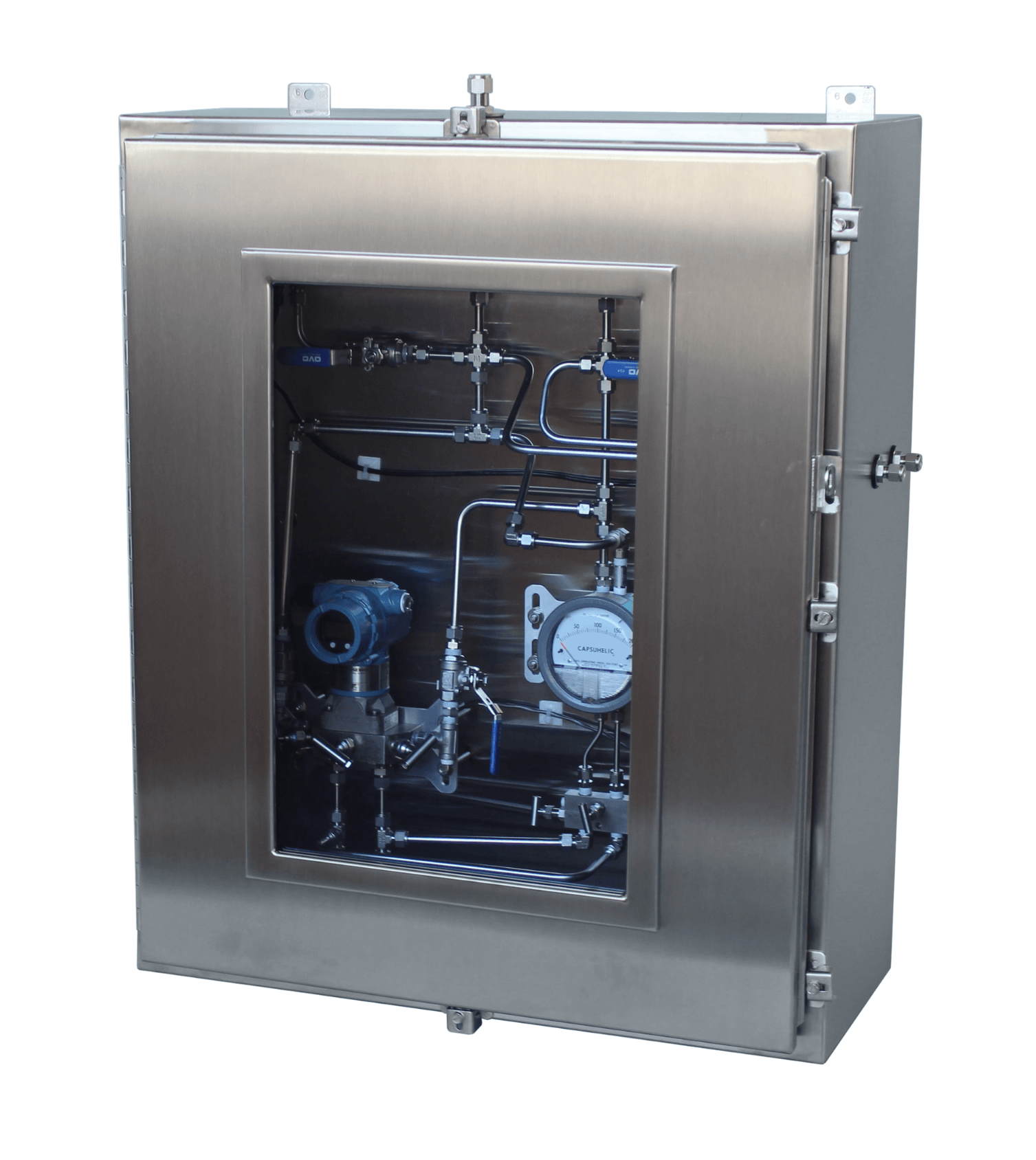

Pre-Assembled Enclosure
Transmitters, Manifolds, Recorders

  • Complete flow metering system
  • Various accessory and mounting options available
  • Ease of installation
Request Pricing

Description

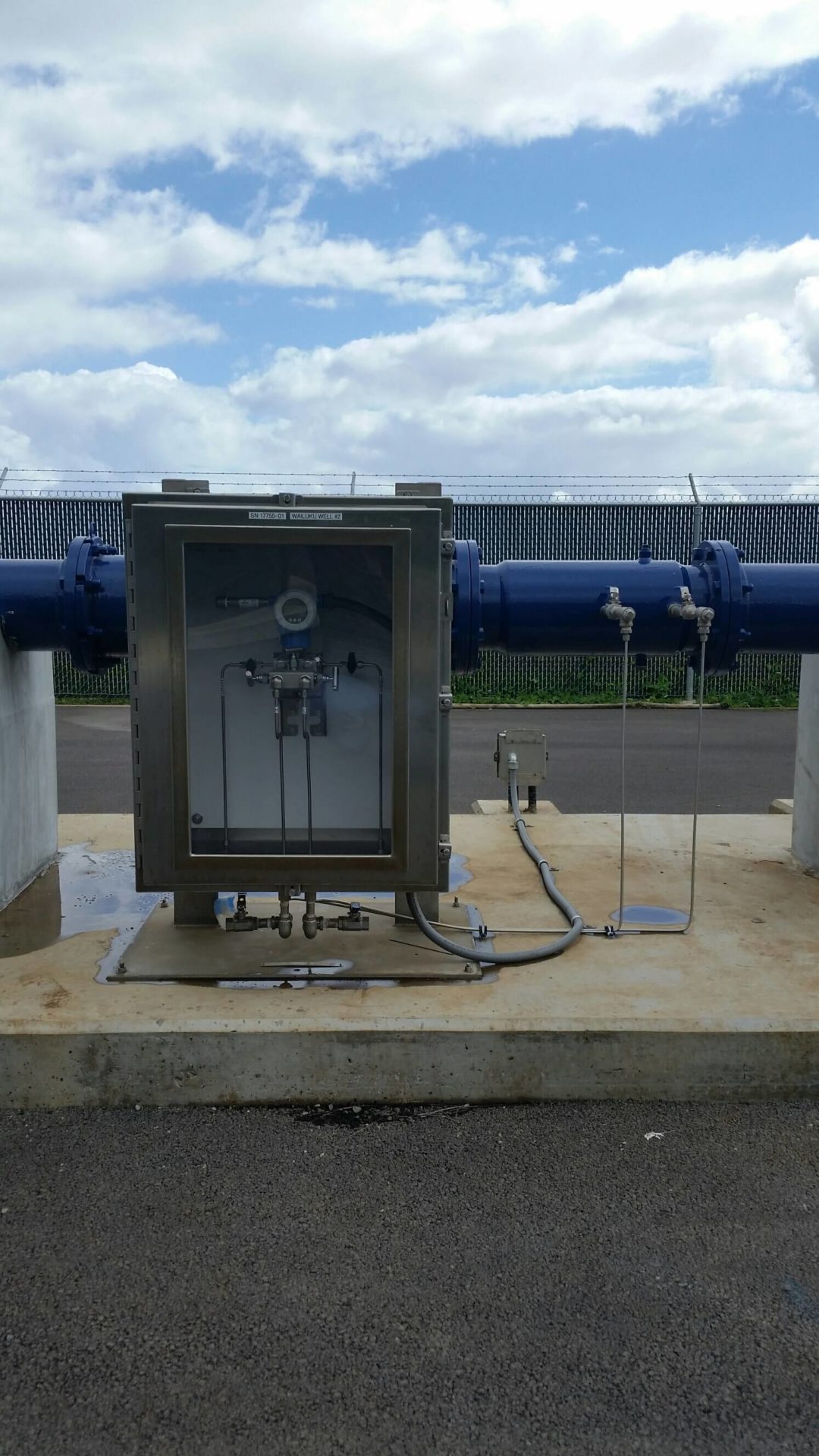

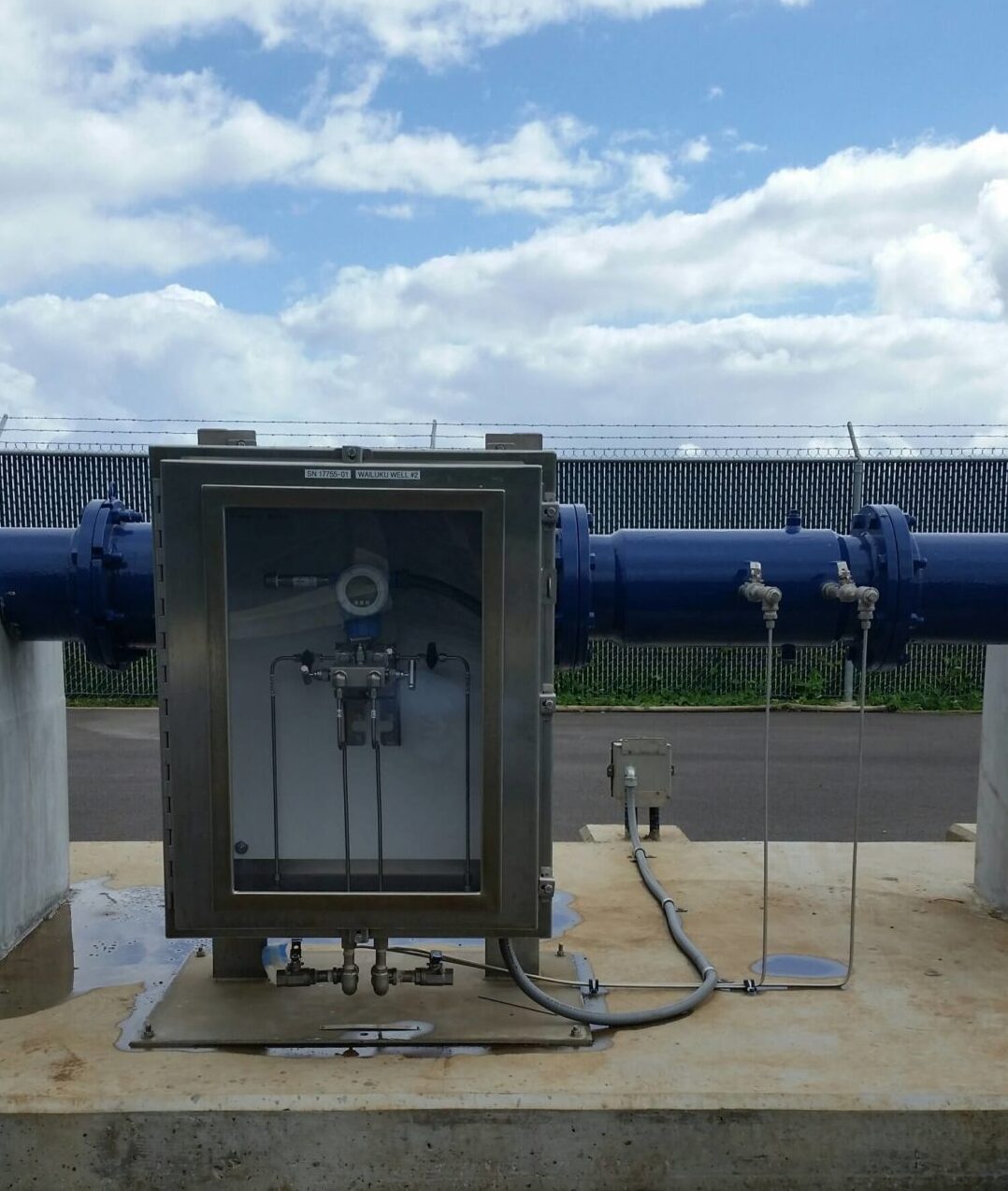

The Flow Master is a complete flow metering system, when using a venturi meter as the primary signal source it consists of the venturi meter (cast iron, flanged; fabricated and insert designs) and the differential pressure transmitter operating as the secondary instrument. By packaging all of the secondary system requirements in a compact enclosure, wiring, plumbing and installation can be easily performed, as well as annual calibrations.

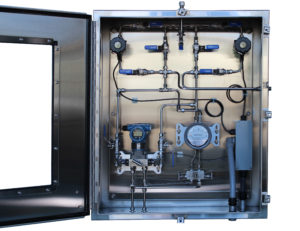

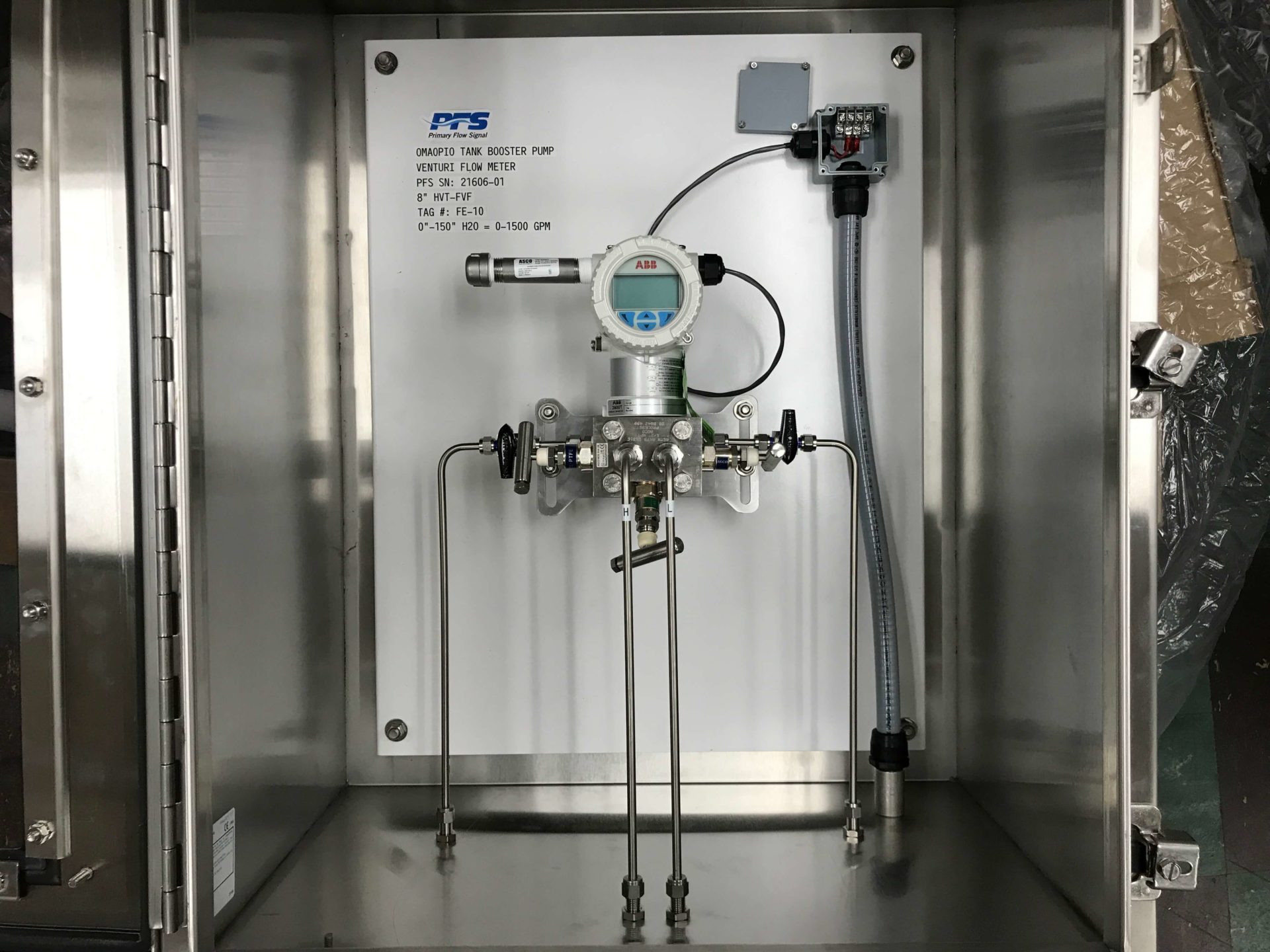

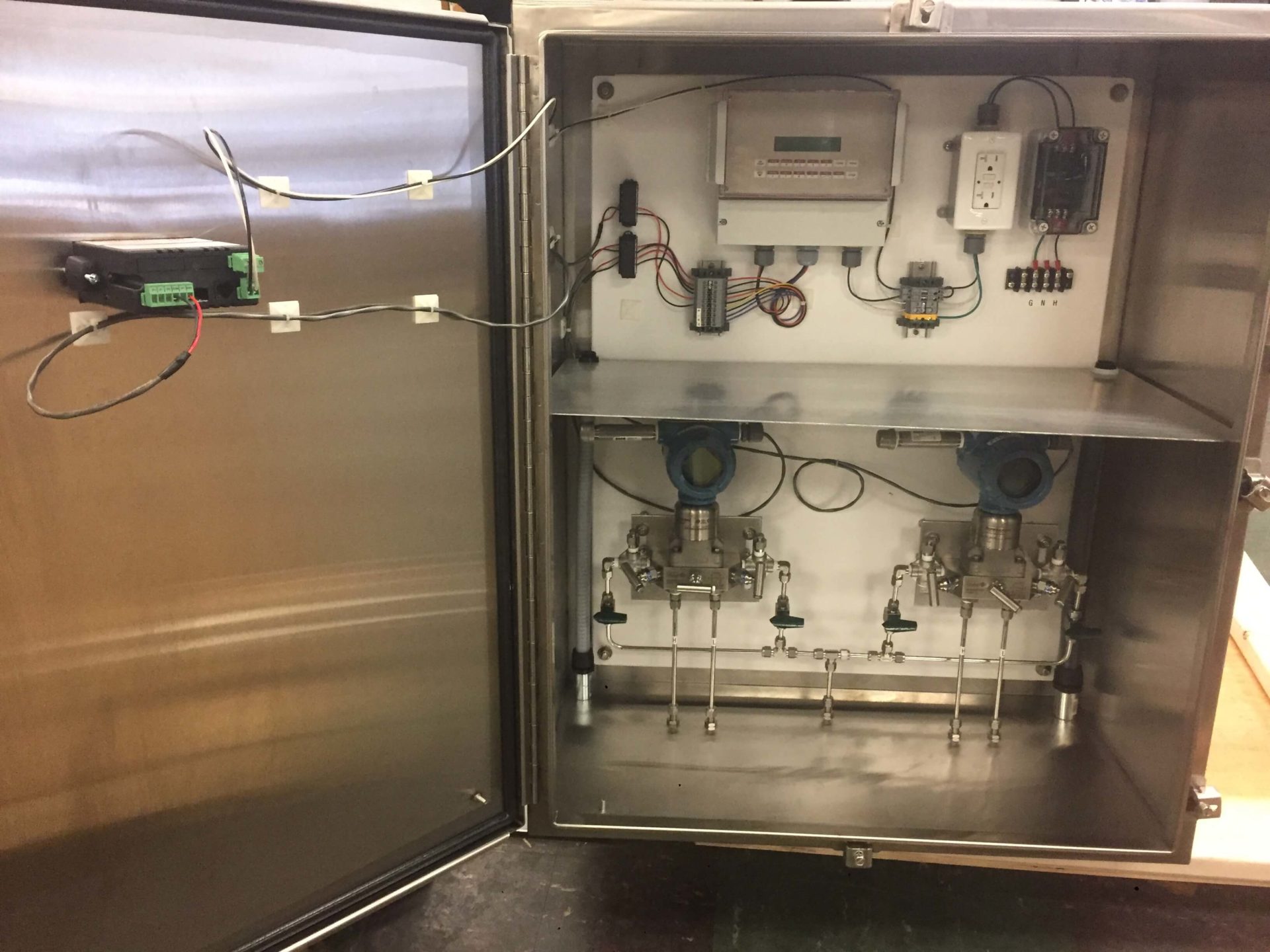

With the PFS Flow Master, Primary Flow Signal, Inc. has combined the critical elements of the typical secondary group in a sturdy NEMA-4X enclosure. These key elements generally include one or more PFS-HP high performance transmitter(s), three valve manifold(s), power supply, surge suppressor(s), totalizer/indicator and may include signal discrimination, chart recorder, linearizer(s) or other customized equipment to meet the specific and unique requirements of the field application.

Specifications

Function Purpose
Eliminates the need for owner or contractor to dedicate trained technical or skilled trades personnel asst for sourcing, purchasing, assembly, wiring, plumbing, calibration, troubleshooting, set up and any of the myriad of other additional responsibilities that are associated with providing an installation utilizing separate components.
Service Functional Limits
The Flow Master is geared toward the smaller plants that want a more turn key solution to the secondary instrumentation
Applications
Municipal Applications, liquids, gases, water and air.
Common Materials
The enclosures are typically 316 Stainless Steel as are the plumbing fittings and tubing and wetted parts of most components. Other components will be manufactured from various materials.
Other Available Materials
Other materials for each component are available.

Additional Images, Charts, or Drawings

Flow Master Metering SystemFlow Master Metering SystemFlow Master Metering SystemFlow Master Metering SystemFlow Master Metering System

Support and Service

In addition to a wide range of differential producing Venturi flow meters, orifice plates, WedgeType™ flow meters, and open channel flow elements, PFS provides comprehensive, specialized services for new and existing flow meters, including rehabilitation, hydraulic analysis, and full engineering support.

Certifications

ISO 9001, ASME S&U, PED Certified, CRN.
