Flow Master (FM)
Complete, Packaged Flow Metering System
For Secondary Instrumentation
- Pre-assembled enclosure
- Easy installation
- Various accessory and mounting options available
Packaged Flow Metering System for Venturi-Based dP Measurement

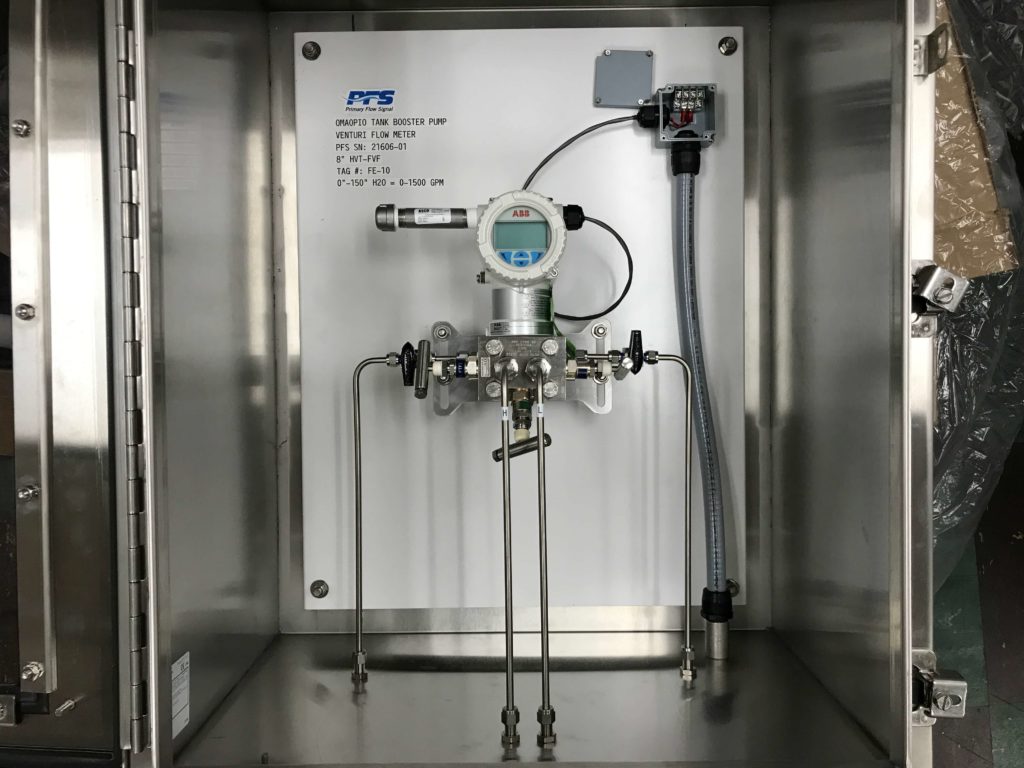

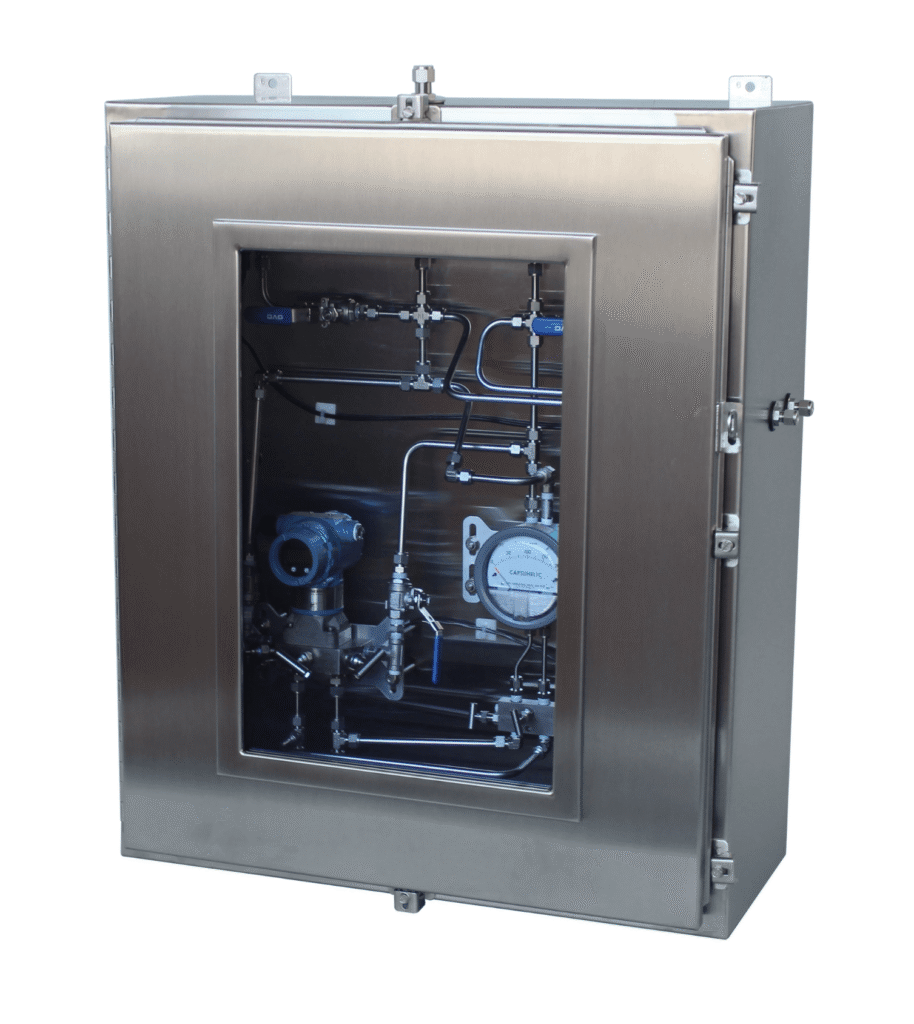

The PFS Flow Master is a complete, packaged flow metering system that combines a Venturi meter (as the primary element) with a differential pressure transmitter (as the secondary instrument) in a single, compact assembly. By housing the secondary instrumentation and supporting components inside a rugged NEMA 4X enclosure, the Flow Master simplifies wiring, plumbing, and installation, while also making ongoing maintenance tasks like annual calibrations easier and more efficient.
When paired with a Venturi meter, whether cast iron flanged, fabricated, or insert designs, the Flow Master consolidates the “secondary group” typically required for a dependable dP measurement setup. Depending on the application, the enclosure may include:
- One or more PFS-HP high performance transmitter(s)
- Three-valve manifold(s)
- A power supply
- Surge suppressor(s)
- A totalizer/indicator
Flow Metering System Key Advantages:
- Faster, Cleaner Installation: Packaged enclosure reduces field wiring and plumbing complexity.
- Protected, All-Weather Enclosure: NEMA 4X housing helps safeguard sensitive components from the environment.
- Simplified Calibration & Service: Centralized layout improves access for verification and annual calibrations.
- Configurable for the Application: Multiple options and accessories to match unique measurement needs.
- Flexible Form Factors: Custom sizes and various mounting options to fit site constraints.
Note: Optional instrumentation, such as signal discrimination, chart recorders, linearizers, or other customized equipment, can also be integrated to meet specific field requirements
Typical applications include municipal and utility flow measurement as well as broader liquid and gas services, including water, air, steam, and most common process fluids, where a rugged, integrated Venturi and dP transmitter solution improves consistency and reduces installation effort.
Flow Master Specifications
Flow Master Materials
Typical materials for standard applications:
- Enclosure: 316 Stainless Steel
- Tubing and Fittings: 316 Stainless Steel
- Wetted Parts on Most Components: 316 Stainless Steel
- Other non-wetted components may use various materials depending on the selected instrumentation and accessories
*Other material options are available by component and can be specified to match your application and environment.
Flow Master Certifications
PFS is a contributor to various international standards committees, fully supporting our staff’s memberships to these commissions.
Individual products follow relevant industry regulations, including requirements specific to the oil and gas, water/wastewater, and power generation industries.
PFS maintains the following certifications, standards & compliances:
- ISO 9001
- AGA
- ASME S & U
- API
- ANSI
- European Pressure Equipment Directive (PED)
Applications
Municipal & Utility Flow Measurement
Flow Master packaged systems are built for municipal environments where fast installation, protection from the elements, and easier calibration are priorities. Used with Venturi meters, they provide a compact, service-friendly metering setup for common utility media such as water, air, steam, and other frequently measured liquids and gases across treatment plants, pump stations, and distribution infrastructure.
Industrial Process Fluids & Gases
In industrial facilities, Flow Master simplifies Venturi based differential pressure measurement by packaging key secondary components in a protected enclosure. It is well suited for measuring most common liquids and gases, including plant air and steam services, while improving service access, reducing field wiring and tubing complexity, and supporting routine verification and calibration.
Industry-Leading Flow Master Manufacturer Since 1983
Packaged Metering Expertise
PFS has built Venturi based differential pressure flow systems for decades. Flow Master consolidates the critical secondary components into a compact, service-friendly layout that reduces installation complexity and supports reliable measurement.
Rugged Build and Documentation Support
Each system is housed in a NEMA 4X enclosure for environmental protection. PFS can also provide quality documentation and compliance related deliverables when required.
Configured for Your Application
Flow Master systems are assembled in-house and configured to your needs. Options can include PFS transmitters, manifolds, surge protection, power supply, totalizer and indication, plus add-ons like linearizers or recorders.
