WX Wedge-X Meter

+/- 4.00% Uncalibrated Uncertainty
Integral Manifold, Replaceable Wedge

  • Line size: 2 inches
  • Head loss % of Differential: 25 to 60 percent
  • Recommended pipe Reynolds number: Must be greater than 5000 for basic accuracy

Description

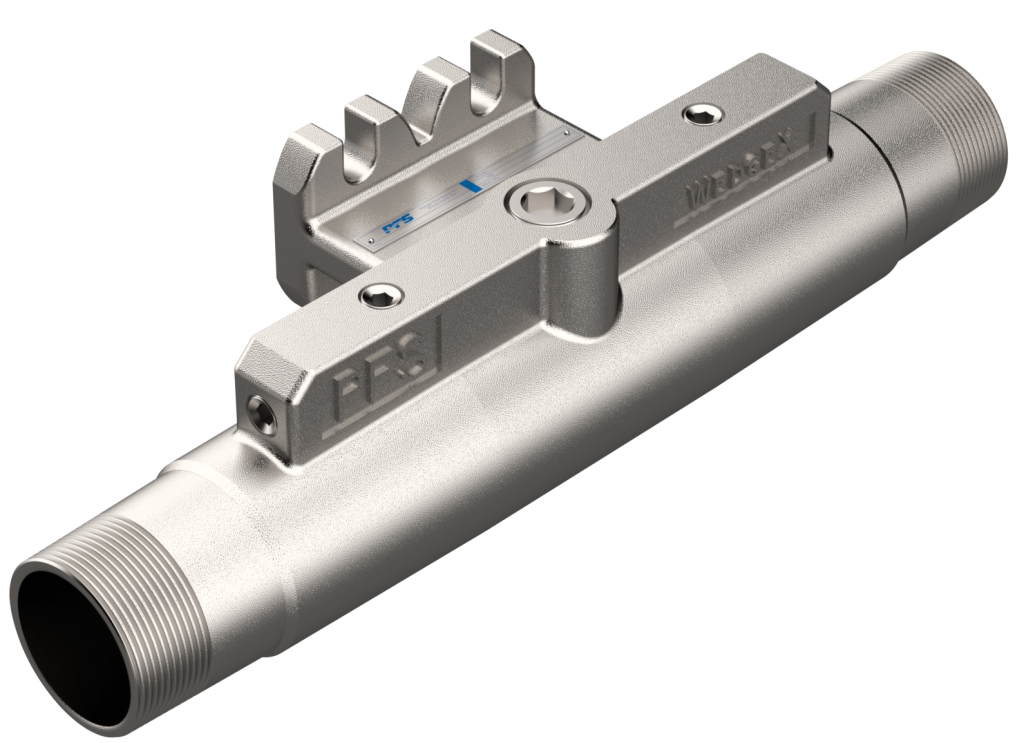

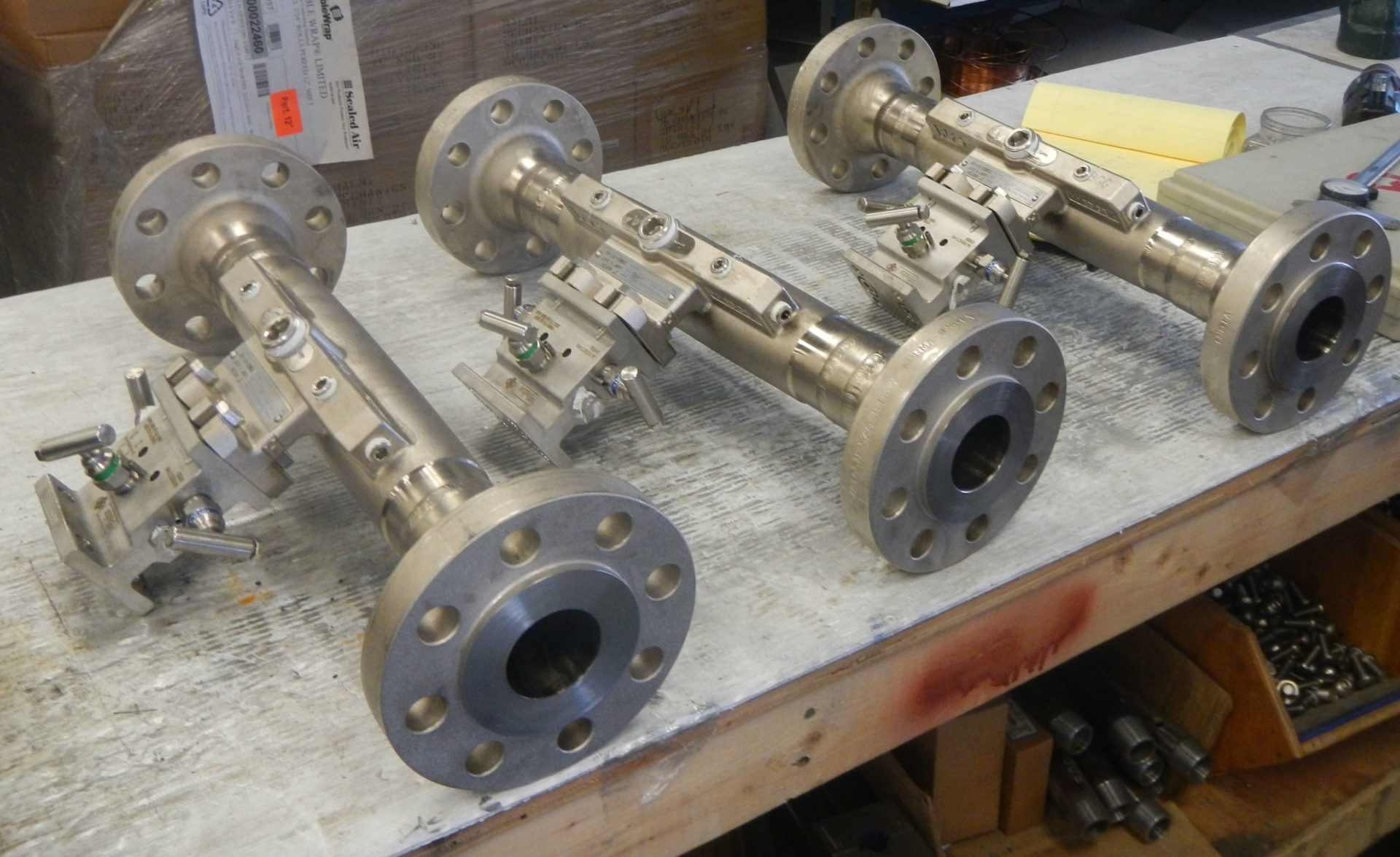

The Wedge-X design is derived from the standard wedge flow meter, but allows for a direct coupled differential pressure transmitter, and a replaceable wedge which results in a compact and cost-effective unit that virtually eliminates both gauge line induced and plugged tap related measurement errors.

The replaceable wedge feature is an extremely fast and cost-effective way of addressing situations like erosion of the wedge. A wedge can also be replaced with a different size to increase or decrease dP as needed.

Wedge flow metering is intended for high-density, slurry type, or contaminated line fluid applications, including difficult-to-meter, air entrained liquids. WedgeX meters can be customized to measure fluids over a large range of pressures and Reynolds numbers; making them ideal for many applications, including shale gas extraction.

Specifications

Line Size
2 inches
Head loss % of Differential
25 to 60 percent
Basic Accuracy (% of Total)
(Wet Calibrated) +/- 0.50, (Uncalibrated) +/- 3.00
Recommended pipe Reynolds number
Must be greater than 5000 for basic accuracy
Required Straight Piping
Consult PFS for required US & DS piping based on your specific application
Beta Range
0.20 through 0.80
Useful Service Life
Medium to Long depending on service
Service Functional Limits
Clear Liquids, Gas and Steam
Applications
Liquids with suspended solids, Chemical and Petrochemical industry, Pulp and paper industry, Mining, Oil, Gas, Refineries, High Viscosity Corrosive and Abrasive Liquids
Common Materials
Carbon Steel, Stainless Steel

Support and Service

In addition to a wide range of differential producing Venturi flow meters, orifice plates, WedgeType™ flow meters, and open channel flow elements, PFS provides comprehensive, specialized services for new and existing flow meters, including rehabilitation, hydraulic analysis, and full engineering support.

Certifications

ISO 9001, ASME S&U, PED Certified, CRN.
