Venturi-MXR
In-Tank Eductor Mixing Systems — Coming December 2026

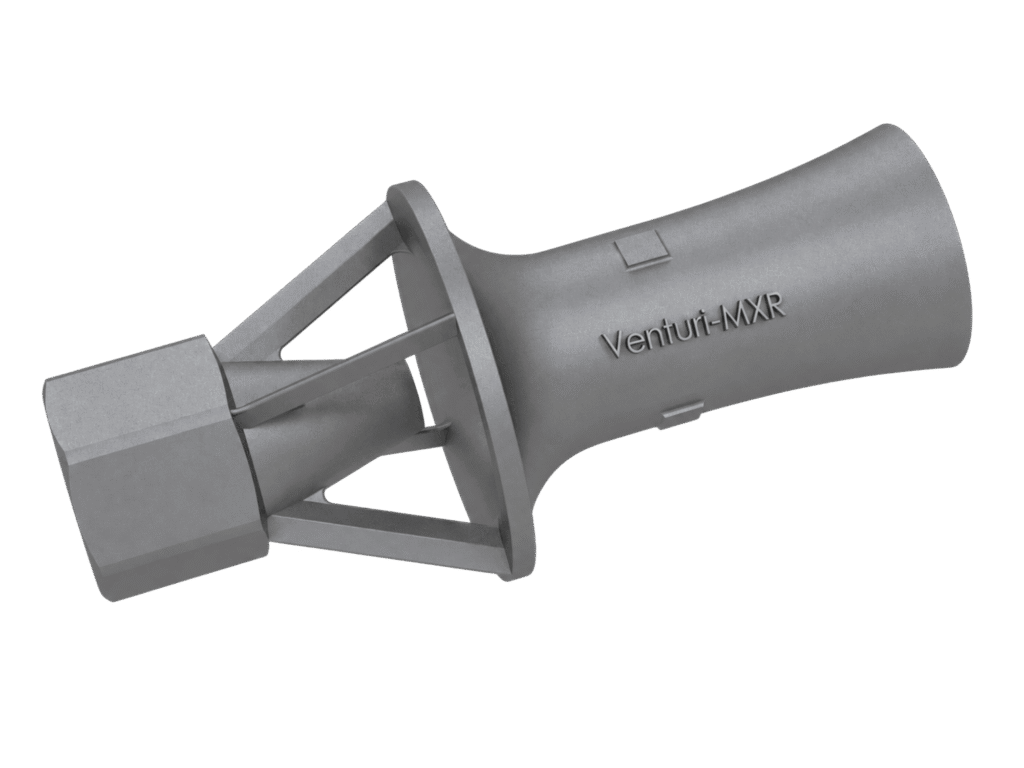

Venturi-MXR for Reliable, Efficient Fluid Handling
The PFS Venturi-MXR is a proven solution for tank mixing, agitation, and fluid conditioning. Using the Venturi effect—based on the Bernoulli principle—the system leverages fluid velocity and pressure differentials to entrain and circulate tank contents without moving parts inside the vessel.
For over 40 years, Primary Flow Signal has been a trusted leader in Venturi design, engineering, and manufacturing. The Venturi-MXR continues that tradition, providing efficient, reliable, and low-maintenance mixing for industrial, municipal, and hygienic applications.
PFS SOLUTIONS
Venturi Mixer Capabilities
Venturi-MXR systems are engineered to solve a wide range of process challenges:
- Suspend Solids — to prevent settling in tanks or pipelines
- Blend or Mix Fluids — of varying densities or compositions
- De-stratify Layers — to eliminate gradients in storage or process vessels
- Temperature Stabilization — by promoting uniform heat transfer
- Accelerated Heating — through direct steam injection
HOW IT WORKS
How the Venturi-MXR Works
The Venturi-MXR uses motive energy—recirculated fluid, secondary fluid, steam, or gas—introduced through a specially engineered nozzle. As the motive accelerates through the Venturi throat, it entrains a calculated volume of surrounding liquid and discharges as a high-momentum jet.
This discharge jet performs the mixing work inside the tank, achieving goals such as solids suspension, fluid blending, temperature control, or liquid de-stratification.
Low-Shear Mixing
Safe for sensitive compounds, live cell cultures, enzymes, and complex chemical processes, increasing process viability.
High Turnover Efficiency
Moves up to five times the pumped volume for accelerated tank turnover.
Improved Aeration & Heating
Produces smaller bubble sizes than spargers, increasing efficiency.
Process Optimization
Accelerates blending, reduces chemical usage, and increases cycle throughput.
Temperature Control
Often saves more than 50% of circulation time compared to conventional methods.
No Moving Parts
Eliminates internal mechanical wear, minimizing maintenance needs.
Applications by Industry
Venturi-MXR systems are applied across multiple industries, including:
| Refining | Chemical Processing | Process & Municipal Water Treatment | Storage: Tanks, Terminals, Ships | Hygienic Processes | |
|---|---|---|---|---|---|
| Suspend Solids |  | | | | |
| Blend / Mix Fluids | | | | | |
| Temperature Stabilization | | | | Rare | |
| Aeration | Rare | | | | |
| De-Stratifying Layers | | | | | |
| Heating | | | | Rare | |
Ready to Optimize Your Mixing Process?
Contact Primary Flow Signal to learn how the Venturi-MXR can improve efficiency, reduce costs, and increase process reliability in your operation.
